Multi-Materials Digital Cutter – B1 Series

B1 Flatbed digital cutting system can realize through cutting, half cutting, creasing, milling, punching and nesting with high speed and high precision. With conveyor table, B1 can complete the material feeding and collecting with fast speed. It is quite suitable for sample making, short-run and mass production in Sign & Graphic, Packaging, Automotive, Gasket industries.

Keywor:

Classificar:

Digital cutter

E-mail：

sales@ameida.com.cn

Message

Back to previous

Advantage：

1. Automatic nesting system: fast and efficient layout, saving time and materials.
2. 7 inch touch screen: easy to learn, easy to operate.

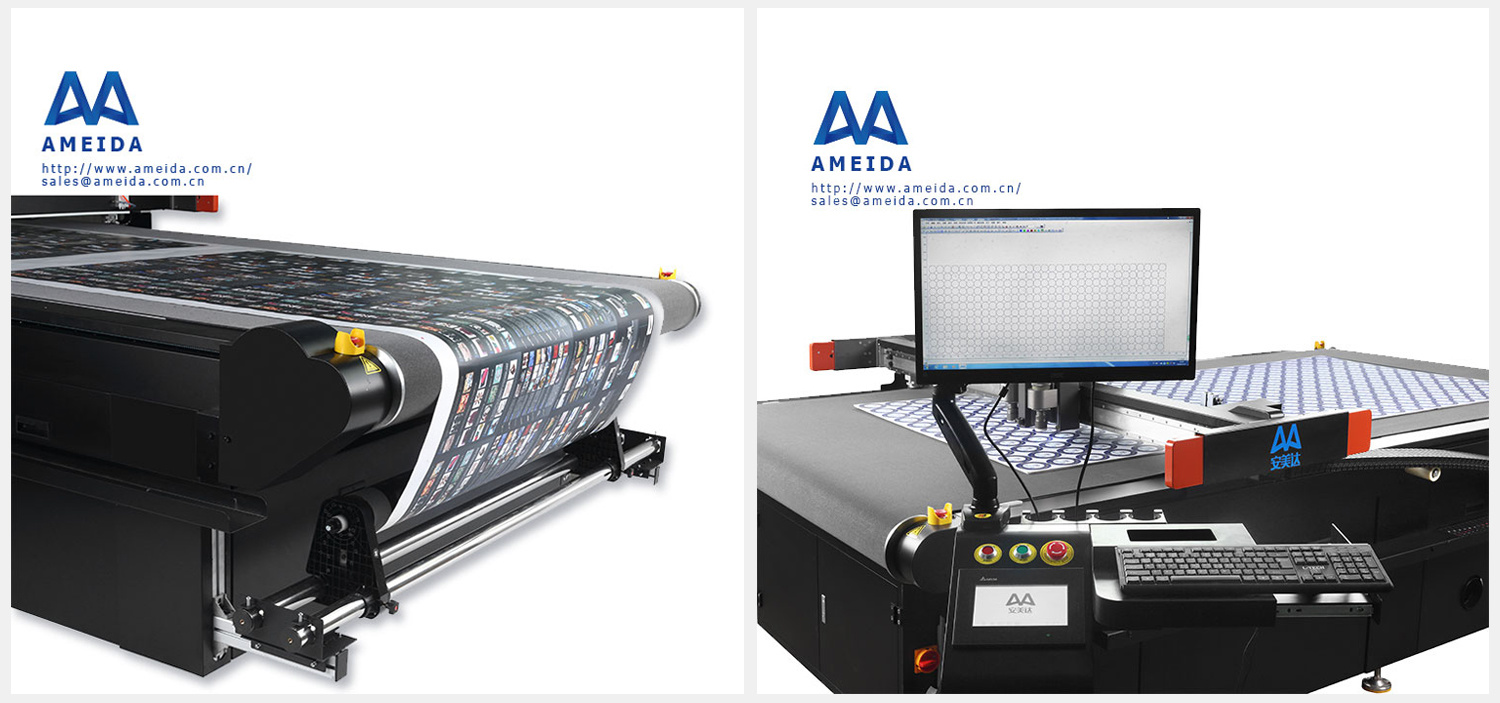

3. Conveyor table: continuous feeding, ultra-long cutting, cutting length is not limited by the length of the table.
4. Infrared sensing system: 360°surround security to ensure operator safety.
5. High quality suction table system: highly flat honeycomb aluminum plate platform with strong suction and long-lasting flatness.
6. Imported servo motor/linear guide: Stable machine performance, long life and high precision.

Parameter：

Model	B1-1316	B1-2513
Working Area(MM)	1300*1600mm	2500*1300mm
Special Size	Customizable
Safe Device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety

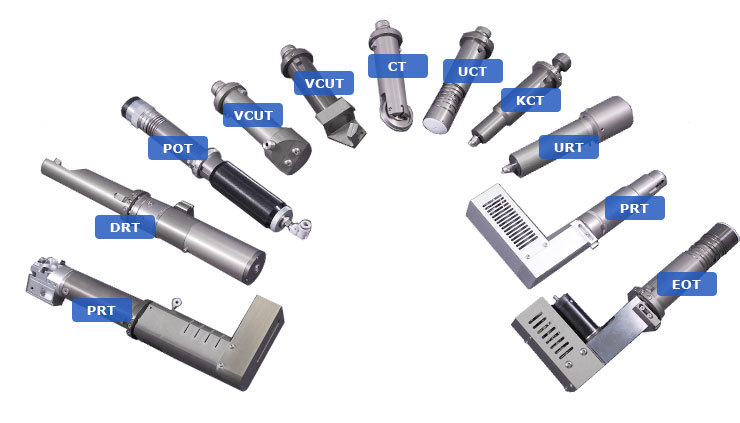

Cutting Tool	EOT, UCT, CCD, Cursor position, Pen, POT, DRT,PRT,KCT
Cutting Thickness	≤50Mm
Cutting Speed	≤1200mm/s
Cutting Precision	≤0.1mm
Repeated Accuracy	≤0.05mm
Fixing Method	Vacuum suction
Interface	Ethernet port
Driving System	Intelligent digital control servo system
Command	DXF, HPGL compatible format
Control Panel	Multi-language LCD touch panel
Suction Power	3KW~12KW(Variable frequency air pump is optional)
Power Supply	AC220/380V 50~60Hz
Working Environment	Temperature: -10° ~ 40° Humidity: 20%～80%
