Multi-Function Digital Cutter – B4 Series

B4 digital cutting system can realize through cutting, half cutting, creasing, milling, punching and nesting with high speed and high precision. With stacker(sheet feeder) and collecting system, B4 can complete the material feeding and collecting with fast speed. It is quite suitable for sample making, short-run and mass production in Packaging industries, and we suggest static table product especially.

Keywor:

digital system cutting

Classificar:

Digital cutter

E-mail：

sales@ameida.com.cn

Message

Back to previous

B4 digital cutting system can realize through cutting, half cutting, creasing, milling, punching and nesting with high speed and high precision.
With stacker(sheet feeder) and collecting system, B4 can complete the material feeding and collecting with fast speed. It is quite suitable for sample making, short-run and mass production in Packaging industries, and we suggest static table product especially.

Advantage：

1. Infrared sensing system, 360° surround security to ensure operator safety.

2. Perfect camera positioning system, support●or十mark etc., improve work efficiency.

3. The sturdy aluminum honeycomb platform has a good suction effect, ensuring that the platform is flat and not deformed after prolonged use.

4. Flexible tooling system, compatible with all Ameida B series tools.

5. Efficient anti-drying and rolling feeding system, complete feeding and cutting in 5 seconds; make the machine realize continuous cutting automatically.

6. Powerful CAD editing and design software, perfect work with CorelDraw, Adobe illustrator, Onyx, Caldera, PrintFactory, MainTop software etc.; And support barcode reading for avoiding operator send the wrong cutting file, improve work efficiency.

7. The parameter formulation system can adjust the optimal cutting parameters according to different materials to ensure the precision of each cutting.

8. The overall frame structure, designed by senior engineers in the industry, simple, stable, easy to install and carry.

9. Accurate tool setting system, easy to operate, can accurately control the depth of the knife and extend the use time of mat.

10. Scientific and simple wiring system and chassis circuit design, stable and safe; equipped with all tool interfaces to support subsequent upgrade; easy to installation and maintenance.

Parameter：

Model	B4-1013	B4-1815	B4-2516	B4-2518	B4-3020
Working Area(MM)	1000*1300mm	1800*1500mm	2500*1600mm	2500*1800mm	3000*2000mm
Special Size	Customizable
Safe Device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety

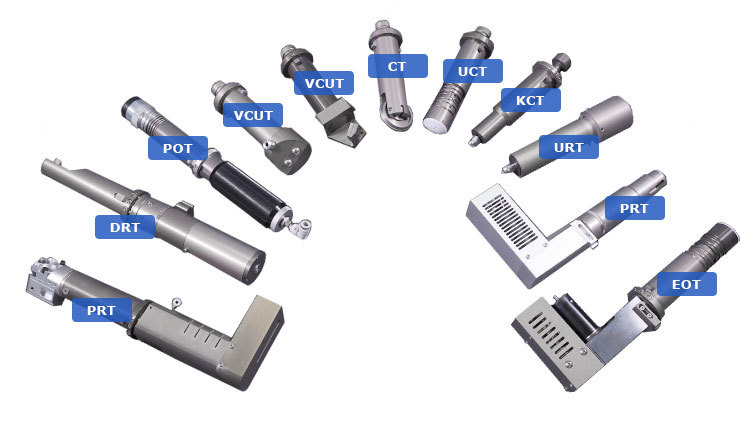

Cutting Tool	EOT, UCT, KCT,CCD, Cursor, Pen, POT, DRT, PRT, CT, VCUT, URT
Cutting Thickness	≤50Mm
Cutting Speed	≤1200mm/s
Cutting Precision	≤0.1mm
Repeated Accuracy	≤0.05mm
Fixing Method	Vacuum suction
Interface	Ethernet port
Driving System	Intelligent digital control servo system
Command	DXF, HPGL compatible format
Control Panel	Multi-language LCD touch panel
Suction Power	3KW~12KW(Variable frequency air pump is optional)
Power Supply	AC220/380V 50~60Hz
Working Environment	Temperature: -10° ~ 40° Humidity: 20%～80%
