Roll Material Cutter – A11 Series

A11 digital cutting system is designed for Advertising industry, can realize through cutting and half cutting with high speed and high precision, with much competitive price.

Keywor:

a11 cutting system material

Classificar:

Digital cutter

E-mail：

sales@ameida.com.cn

Message

Back to previous

A11 digital cutting system is designed for Advertising industry, can realize through cutting and half cutting with high speed and high precision, with much competitive price.

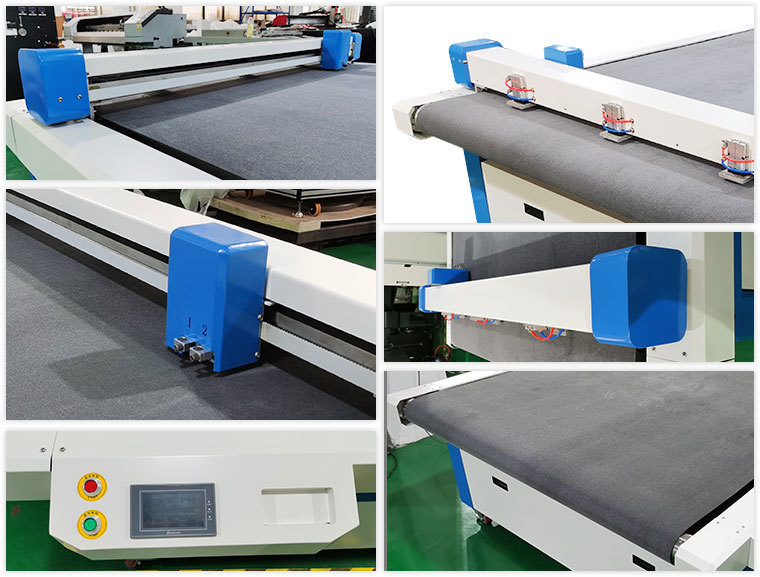

With stacker (sheet feeder) and collecting system, A11 can complete the material feeding and collecting with fast speed. It is quite suitable for PP paper, stickers and reflective materials cutting.

Advantage：

1. Touch screen: Self-sustaining R&D operating system, easy to operate.

2. Conveyor table: Send material automatic, can cut extra-length patterns.

3. Industry camera: Automatically correct printing deviation.

4. Software: Support graphic mixed typesetting, one-click contour generation.

5. Cut mode: Half-cut and full cut both workable, fit your demand.

Parameter：

Model	A11-1316
Working Area(MM)	1300*1600
Cutting Speed	≤400mm/s
Cutting Thickness	≤1MM
Cutting Material	Car stickers, Reflective materials, PP paper, etc.
Tool	Universal Cutting Tool,Kiss Cut Tool
Fixing Method	Vacuum suction
Cutting Precision	≤0.1mm
Repeated Accuracy	≤0.1mm
Interface	Ethernet port
Command	DXF, HPGL compatible format
Control Panel	Multi-language LCD touch panel
Driving System	Intelligent digital control hybrid servo system
Suction Power	3KW
Power Supply	AC 220 ±10% 50~60Hz
Working Environment	Temperature: -10° ~ 40° Humidity: 20%～80%
